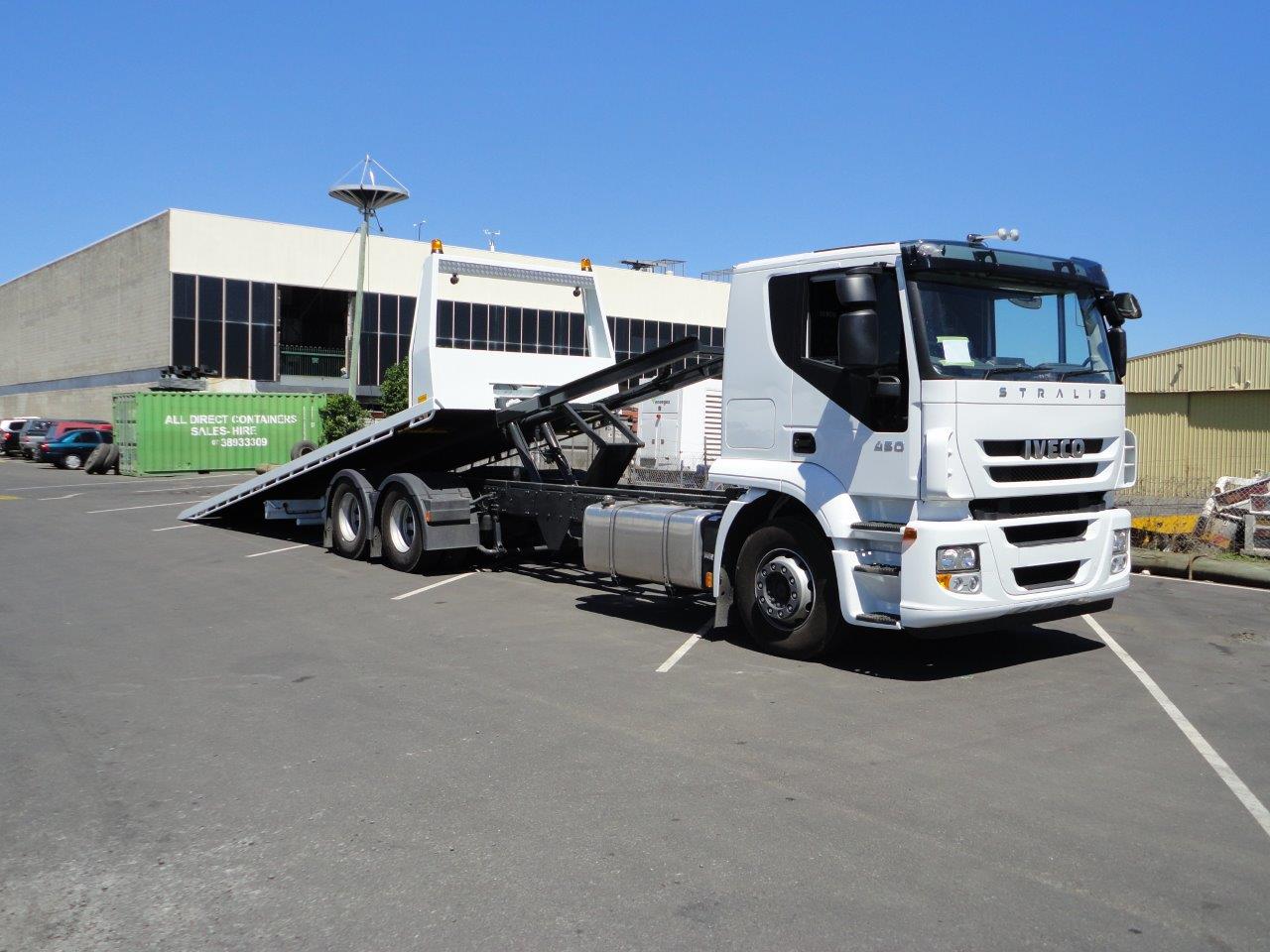

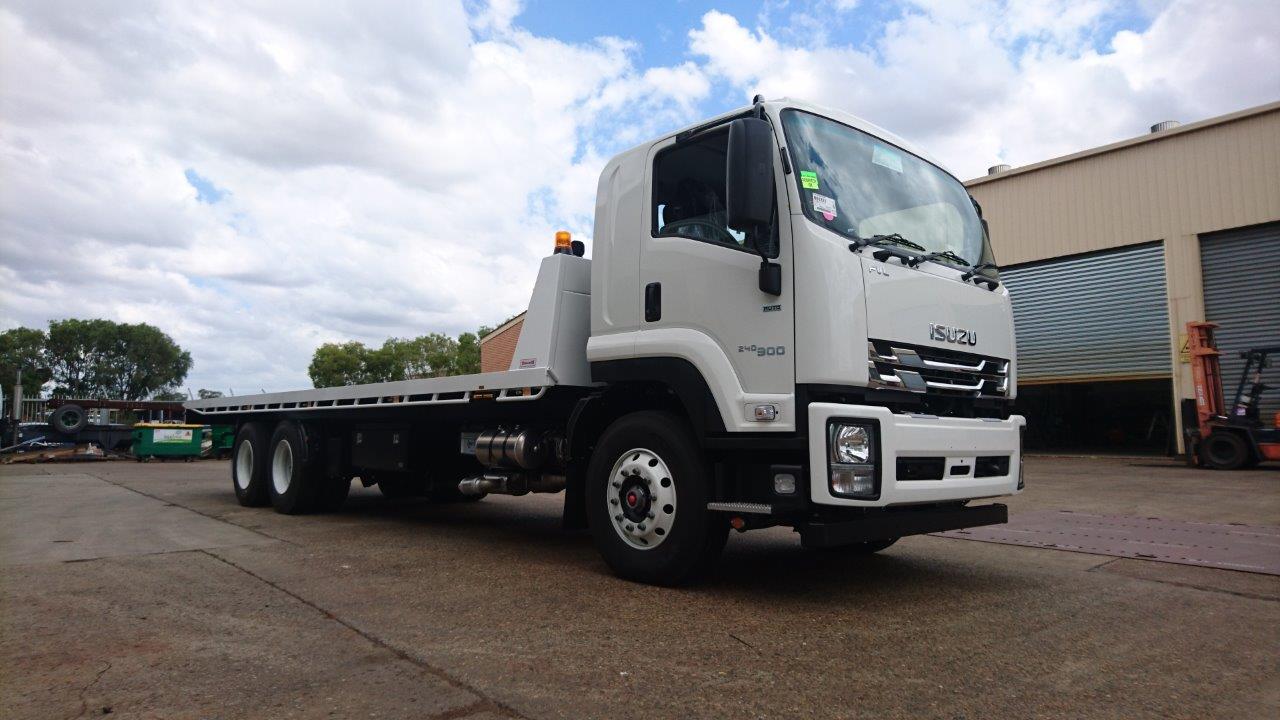

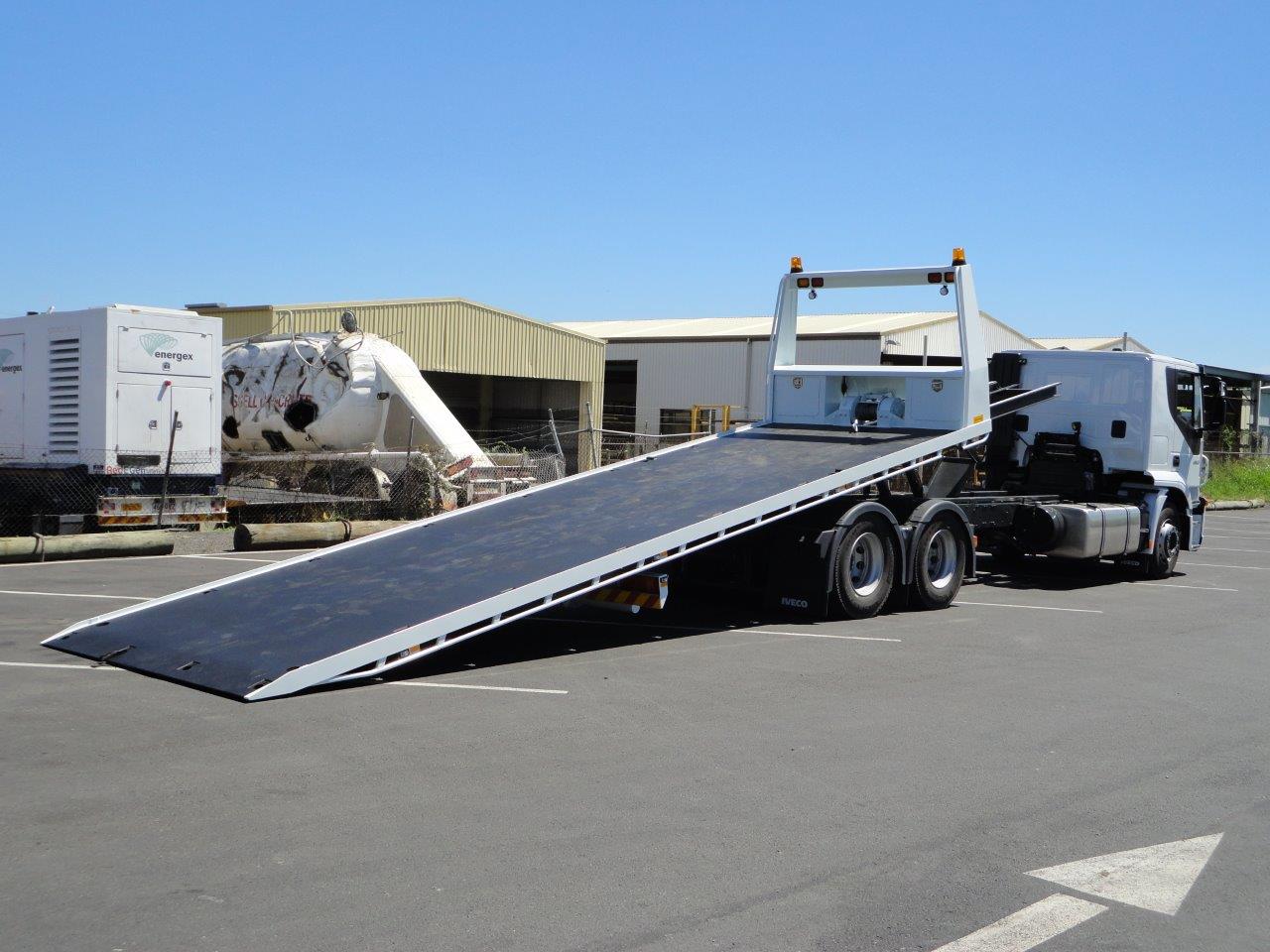

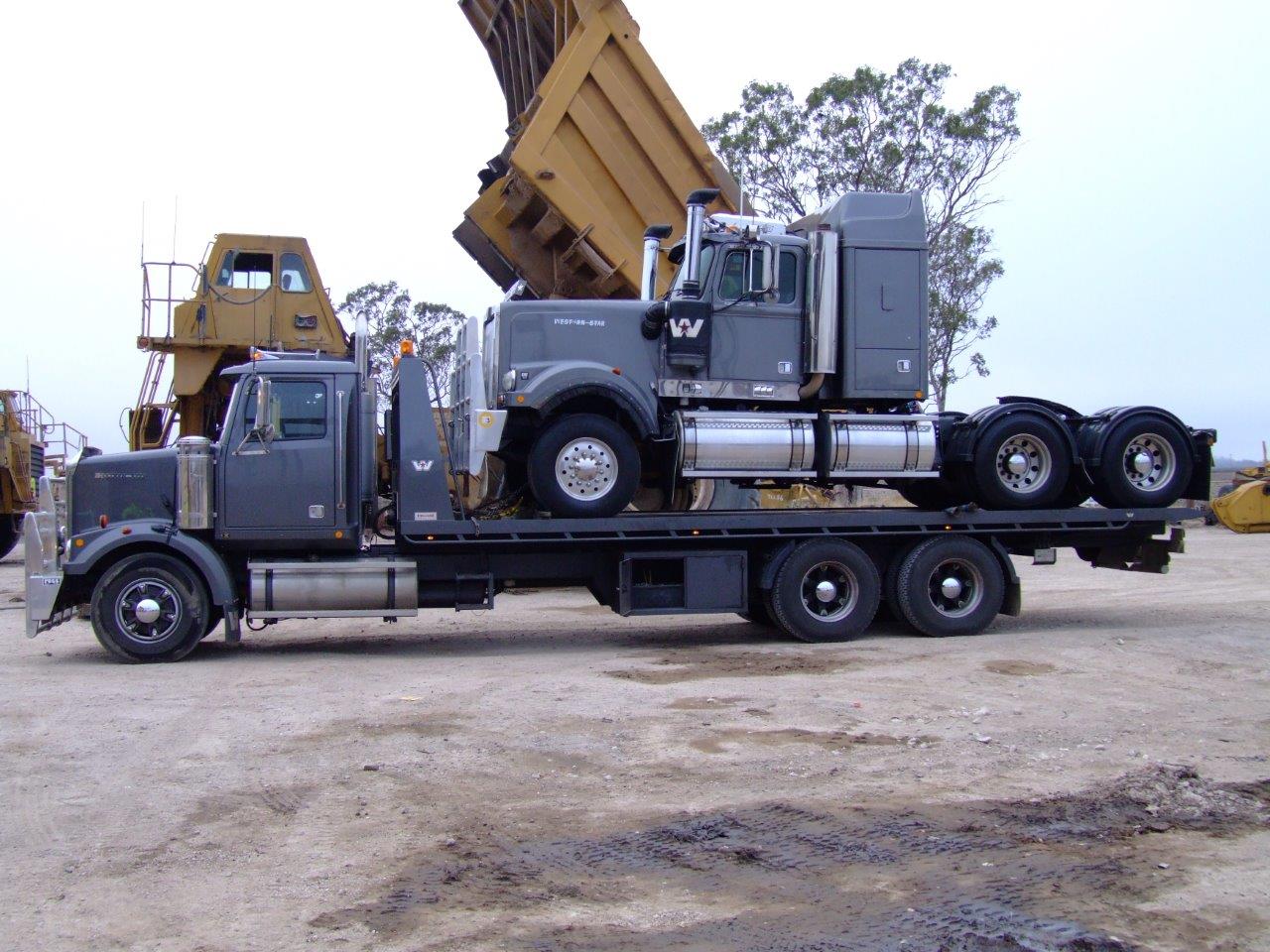

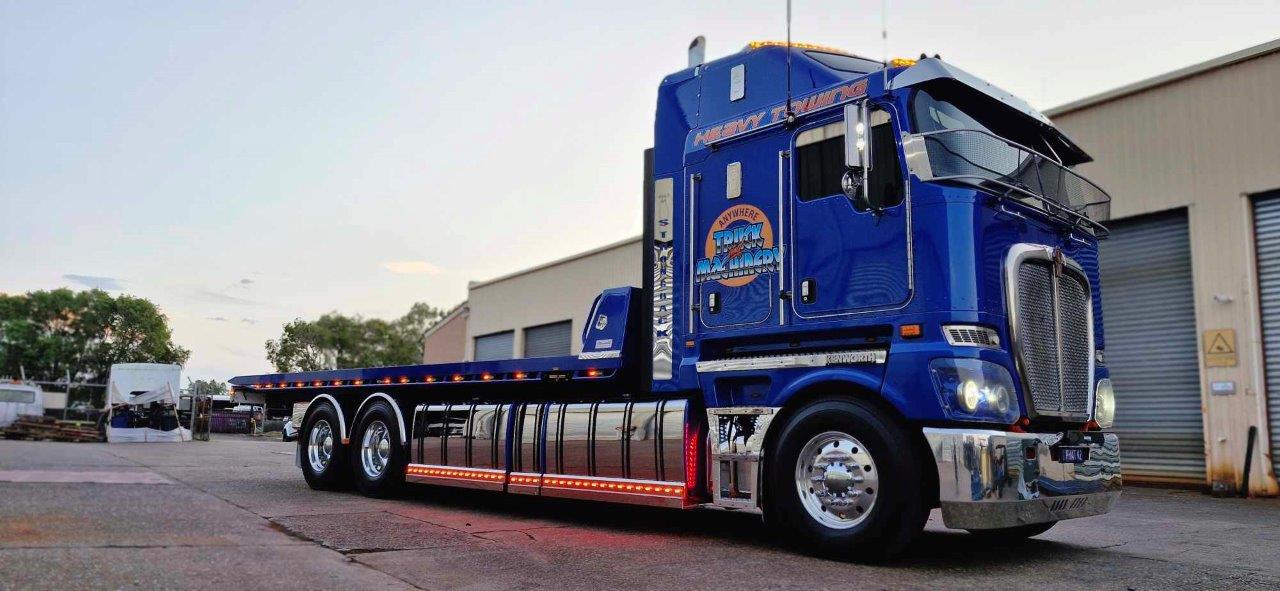

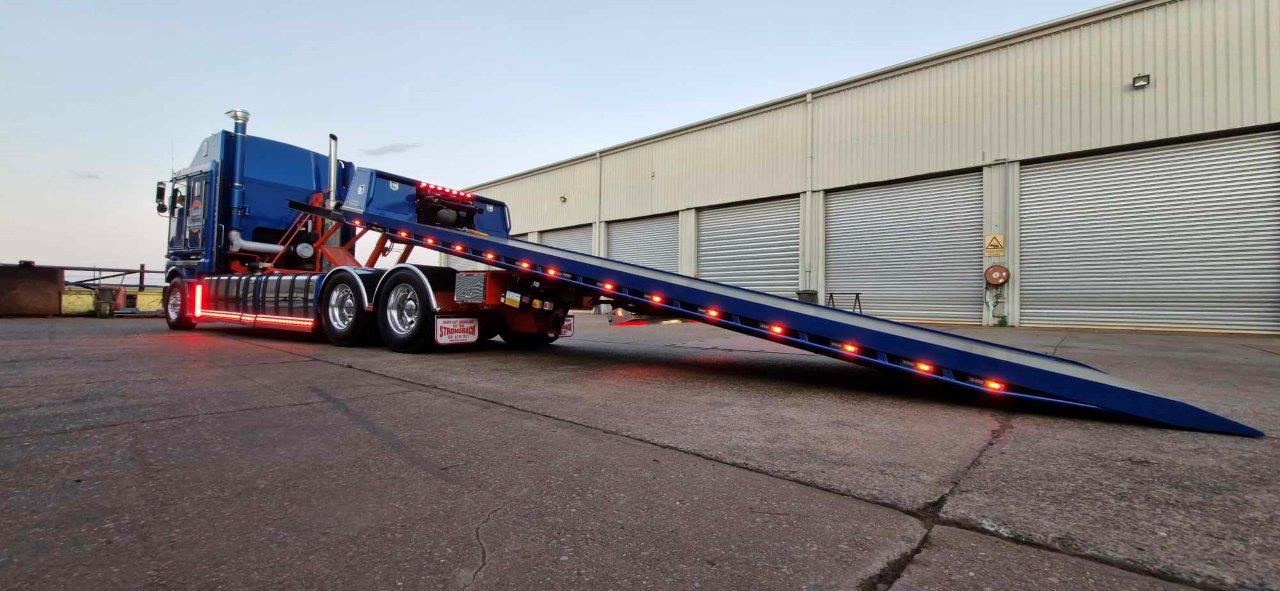

TILTTRAYS TO SUIT 22,500kg GVM TRUCKS

/22500kg/22500kg/22500kg/22500kg/22500kg/22500kg/22500kg/22500kg/22500kg/22500kg/22500kg/22500kg/22500kg/22500kg

  • HIGHER HORSEPWER CAB CHASSIS ARE HEAVIER REDUCING CARRYING CAPPACITY
    POSSIBLE TO TOW A 6 METRE DOG TRAILER AND CARRY 2 X 20' CONTAINERS
    MOST JAPANESE 6X4 22,500 kg GVM TRUCKS HAVE A CARRYING CAPACITY (ON ROAD) OF 10.0-11.0 TONNES


           STANDARD FEATURES   (INCLUDED IN THE PRICE)

         * 20,000 lb Archerfield Precision Engineering winch (30,000 lb optional), with cable tensioner

         * Full cab height pressed (3 mm) headboard with 2 large lockable (drop T handles) toolboxes
         * 2 rotating lights, 2 work lights, stop/tail/ turn mounted at top of headboard. LED clearance lights
         * Heavy duty scissor between truck and chassis and tilt tray sub-frame to minimize truck chassis flex

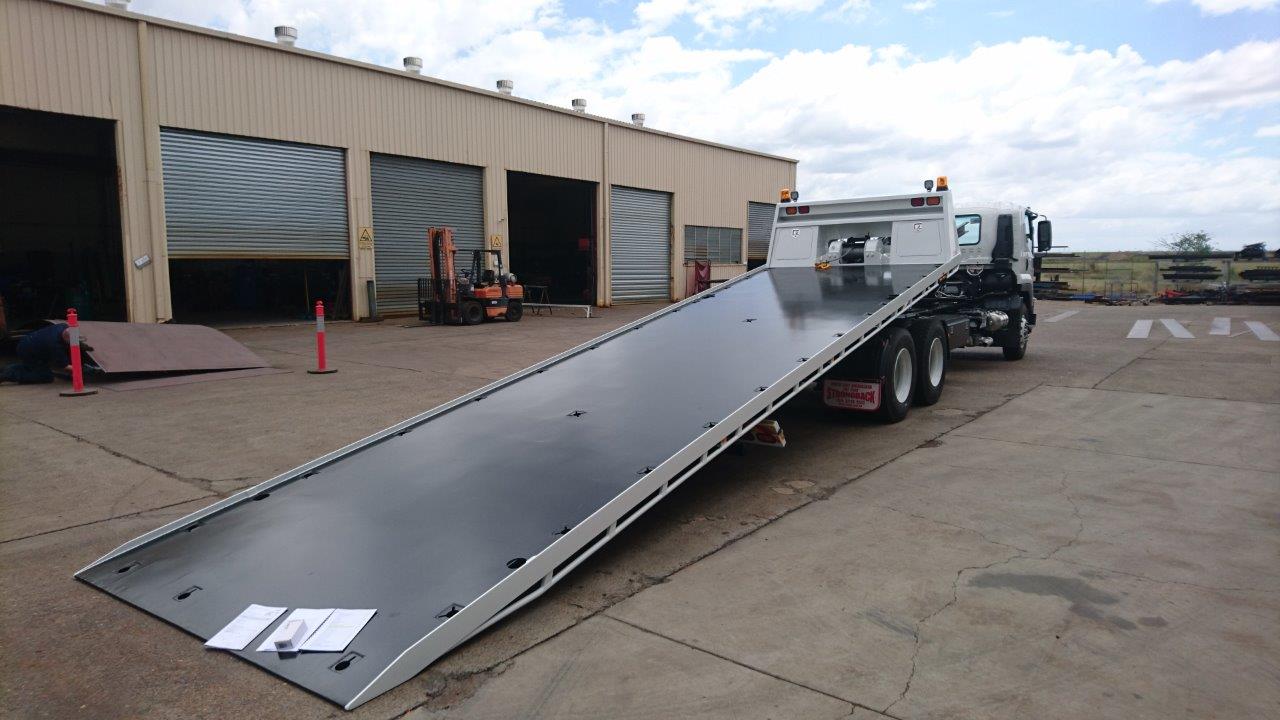

         * 6mm Hardox (hi-tensile) floor with flush mounted container pins
         * 12 keyholes (tie down points) in floor
         * Tray painted white in 2 PACK (other colours available)
         * Up to 9.00m long ( longer trays available)

    OPTIONS

    BODYWORK-

         * TSEB050 Quicklash vehicle tie down system
         * TSEB030 Fold Down Tail Lights
         * TSEB070 Hayman Reece style towball socket over winch

     ELECTRICAL-

         * TSEE10 1800mm wide lightbar with 4 spinners
         * TSEE020 L E D taillights

    OVERSIZE-

         * TSE010 Drop in Oversize sign (rear only)
         * TSE020 Fold up/down (gas struts) Oversize sign mounted on top of headboard
         * TSE030 Pole mounted rear rotating light

    RADIO REMOTE-

         * TSER 020 Teleradio  all tray function or IMET system

     TOWING-

         * TSET010 Fold away  towbar with 50mm ball/pintle hook
         * TSET0140 50mm Ringfeeder in tow member at rear of tilt frame
         * TSET150 127mm Bartlett Ball in tow member at rear of tilt frame
         * TSET060 24v to 12v voltage reducer
         * TSET070 Electric Trailer brakes
         * TSET080 Foot only Trailer brakes with air to rear

    TOOLBOX-

         * TSEB010 Chassis mounted toolbox
         * TSEB020 Chassis mounted toolbox with Stainless Steel door
         * TSEB030 25l watertank Chassis mounted
         * TSEB040 25l watertank with soap dispenser mounted on headboard
         * TSEB050 60l Chassis mounted water tank
         * TSEB060 Shelf in headboard (one side)
         * TSEB070 Chain Rail in headboard (one side)

    WINCH-

         * TSEW040 30,000lb A.P.E. winch instead of 20,000lb A.P.E. winch
         * TSEW050 Air dog clutch with switch mounted at the hydraulic controls

     This quote is for supply and fitment of the tilt tray body only for trucks with manual transmissions and does not include any modifications to the trucks air system, exhaust system, or chassis. 2 years unlimited kilometre warranty on all parts manufactured by South East Queensland Tilt Tray. Overloading or misuse may void warranty. All warranty work is done on our premises. All other parts (hydraulics, lights, etc.) warranted by their individual suppliers.

     Quote does not include any special wiring harness or associated hardware to interface the PTO or L E D lights with any truck or manufacturers vehicle systems.


  •
